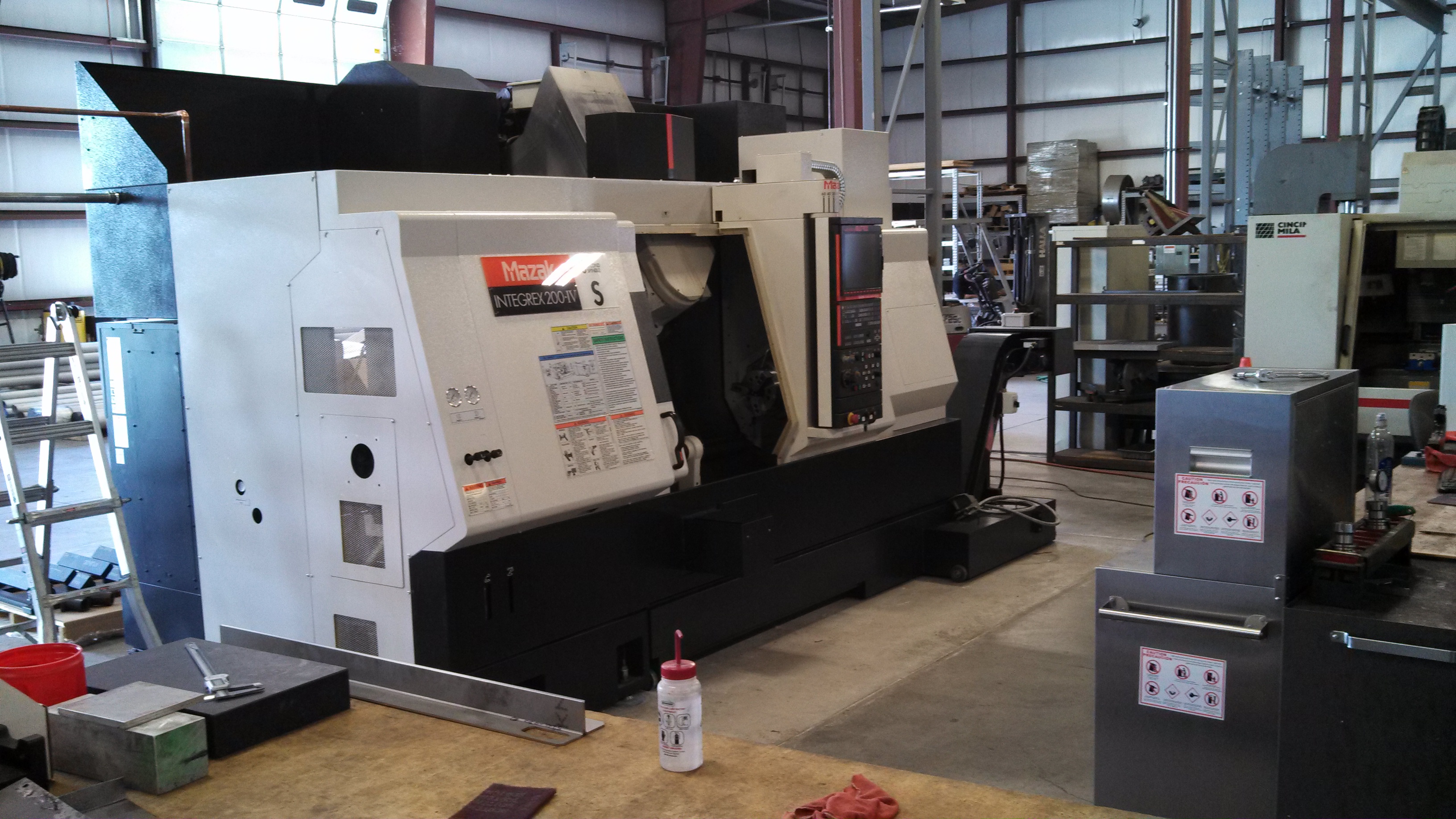

Mazak INTEGREX, 200-IV S, 5 Axis CNC Lathe

Advanced Multi-Tasking with Integrex® delivers maximum versatility and throughput for complex parts.  Integrex® is the marriage of a high-powered turning center and a full-function machining center to produce parts in a single setup.  It works to eliminate multiple setups, fixtures, tools, handling and waiting time, which simply add to your manufacturing costs.  In addition, Done-In-One machining brings dramatic reductions in lead-time and efficient lot sizes to satisfy customer JIT and cost demands. Part accuracy is improved by eliminating multiple setups.

Please see Mazak video link below for capability demonstration.  Machine shown is not the exact model however, capabilities are similar.


http://www.youtube.com/watch?v=GjobN1YvUdY


Milling Spindle: 12,000 rpm - 25 hp(20% ED)
Main Spindle: 5,000 rpm - 30 hp (30 min.)
Max. Swing: 26”
Chuck Size: 8"

Has a second spindle

Can hold 40 tools in the Turret

Video:
